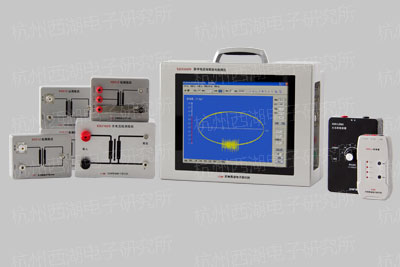

Pulse Current PD Detector

Core standards

• GB/T 7354-2003 Partial discharge measurtments (IEC60270：2000 IDT)
• DL/T 846.4-2004 General technical specifications for high voltage test equipments part 4:partial discharge detector
• DL/T 417-2006 Guide for partial discharge measuring of power equipment

Features

• Easy to operate

     Our software is based on the Microsoft. It’s easy to operate.

• Automatic calibration

     The instrument provides two models of calibration. The automatic calibration is convenient for the new users.

• Intuitive interface

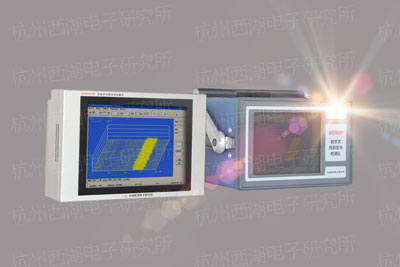

     Our software provides elliptic, linear, sine and two-dimensional and three-dimensional maps of partial discharge. It’s intuitive, easily to observe and analyze a variety of discharges. Frequency, phase, intensity, test voltage and other characteristics are clearly shown in our software.

• Pulse discrimination

     Our pulse current detectors have a strong pulse discrimination system electronically and digitally. This is our core technology in this region. Most noise can be erased by our instruments automatically.

• Synchronization

     Our test system has a 'zero scale input'. It can be connected with outside power system. Our software can automatically show the power, frequency and phase of power supply. The phase of software is exactly same as the phase from the power supply. So any phase analysis is available.

• Communication interface

     There is an ethernet port to communicate with any micro soft supported computer to make the data exchange. USB is available to save and open the data.

• Multi-channel characteristics

     Each channel has this own independent signal modulation, A/D converter, DSP algorithm processing, ethernet interface and TCP/IP protocol. Six channel signals can be shown in same time.

• More PD analysis tools

     Our software provides a lot of functions to analyze the PD signals in complicated situations. The most common used tools are as follows:

     Open a window or double windows: you can measure the PD signals only in the windows or erase the signals in the windows.

     Scale: you can measure every PD signal per this tool.

• Accessories

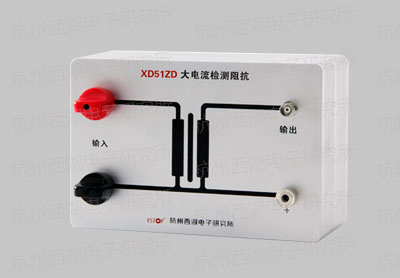

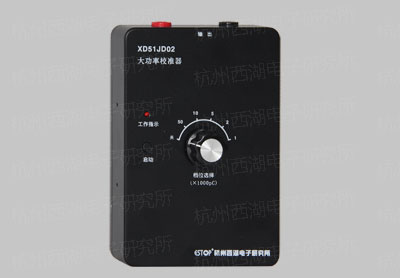

     Calibrator and impedance.

Technical Parameters

• Precision:                          ≤0.1pC.
• Linearity error:                  ≤±3%.
• Sampling rate:                  65MS/s.
• Range shift error:：          ≤±3%.
• Sampling accuracy:          12Bit.
• Pulse resolution time:       1μs.
• Testing frequency band :  Lower limit 10～80kHz,Upper limit 100～1000kHz.
• Detection of impedance:   6pF～250μF.
• Gain:                                －20～40dB.
• Calibrator:                         2～50000pC,Time to reach the highest voltage ＜60ns;Time to reach the lowest voltage >100μS .
• Synchronization mode:     wired, wireless;frequency 30～300Hz;voltage AC10～220V;Accuracy 0.01°;Wireless distance ≥75m.
