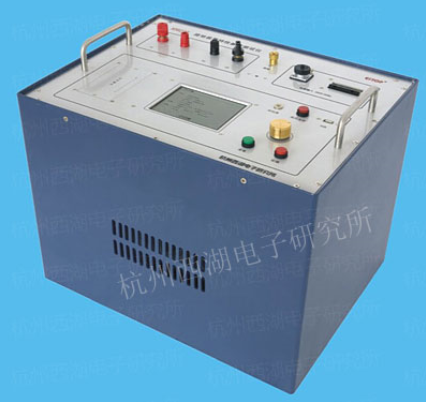

XD62 series grounding device characteristic parameter tester - Others

Product features

Anti-interference abiltily

The 40-60Hz automatic frequency conversion and the Fourier algorithm (FFT)-based precision spectrum technology can accurately measure the background interference signal several times or even several times stronger than the measurement signal.

High-power variable frequency power supply

Built-in precision high-stability variable frequency power supply, large output current range, good voltage and current stability, can be applied to the measurement of grounding impedance of various large and medium-sized grounding grids.

Impedance frequency characteristics

With automatic sweep measurement, draw Z-f, V-f curve function. It fully reflects the frequency characteristics of the ground impedance and potential of the measured ground network, and can comprehensively monitor the frequency distribution of the ground network interference and the mutual inductance of the test leads.

Voltage conversion

For a test field with a large loop resistance and a small test current, an external step-up transformer is supported to increase the test current.

Data processing

Industrial grade 32-bit ARM processing platform, built-in large-capacity memory, thermal printer, USB interface, support for U disk

Field adaptability

It adopts a special display in the field and is clearly readable under strong sunlight;

Top panel structure, suitable for field work without working platform;

The structure is firm and can withstand the shocks and shocks caused by frequent transportation, loading and unloading, and moving

technical parameter

Grounding device characteristic parameter tester

Impedance measurement: range 1mΩ～100Ω, accuracy: ±(1%+2 words);
Test frequency: 40 ~ 60Hz, step size 0.5Hz;
Frequency selection bandwidth: 0.5, 0.25, 0.1 Hz optional;
Frequency Power: XD6205/2KVA/5A，XD6230/10KVA/30A；
Host output: 0～400V.

Frequency measuring instrument

Voltage measurement: range 0~200V,accuracy: ±(1%+2 words);
Current measurement: range 0~30A, accuracy: ±(1%+2 words); (Host)
Test frequency: 40 ~ 60Hz, step size 0.5Hz;
Frequency selection bandwidth: 0.5, 0.25, 0.1 Hz optional;
Input impedance: ≥1MΩ;
Human body analog resistance: 1500Ω ± 5%;
Allow background signal to noise ratio: ≤ 1:10 (type A is 1:100);
Power supply: rechargeable battery, continuous working time 8 hours.

Product number

number	name	Feature description
XD6230	Grounding device characteristic parameter tester	Variable frequency power supply 2KVA, output current ≤ 5A
XD6205	Grounding device characteristic parameter tester	Variable frequency power supply 101KVA, output current ≤ 30A
XD6200	Frequency measuring instrument	Suitable for signal noise 1:10 and below
XD6200A	Frequency measuring instrument	Suitable for signal noise 1:100 and below

Statement: All of our products are based on complete and independent research and development, and have complete intellectual property rights; we have no OEM products.
