Features:

•  Chassis:Our reference designs are based on chassis in three different sizes.Nissan crew cab pickup-truck chassis;IVECO

Daily van-type chassis;ISUZU light truck chassis.

•  Vehicle assembly:We work with professional truck builders that meet out strict quality standards.

•  Interior layout:The interior layout is thoughtfully designed.Most connectors and operation panels are conveniently located at

one side of the vehicle.Cover panels are pneumatically raised.Spacious and well-lit interior space improves ergonomics and

efficiency.Operation space has large windows for observation.

•  Driving safety:All vehicle designs have balanced weight distribution with low center of gravity to ensure the drivability of the

vehicle.Cameras and sensors are placed in all directions to improve situation awareness when driving.Camera footage can be

recorded just as dashcam.

•  Equipment and racks:All measurement instruments are designed as standardized rack-mount units.Units can be installed

and uninstalled with ease.Common resources for testing are also integrated into removable “Common Supporting Units”.

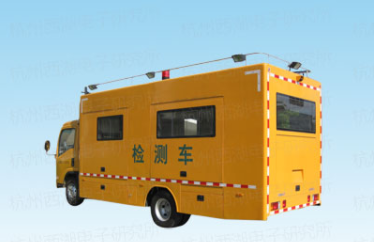

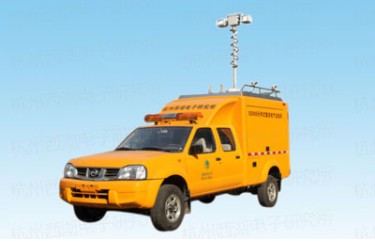

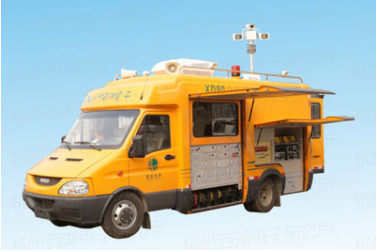

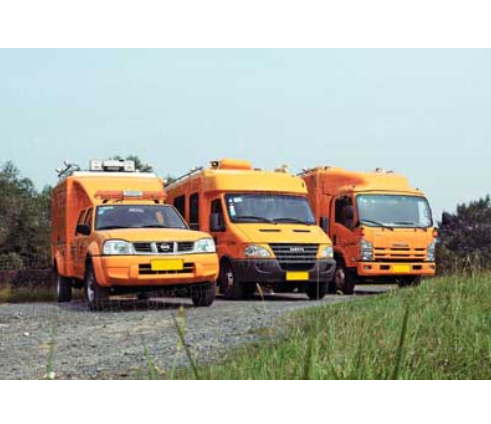

Nissan pickup-truck version	IVECO Daily van version	ISUZU light truck version

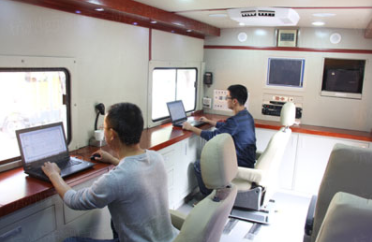

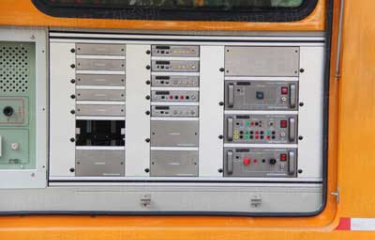

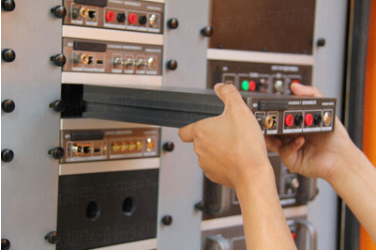

Measurement instruments compartment	Installing rack-mount unit	Comfortable operator room

Vehicle Layouts:

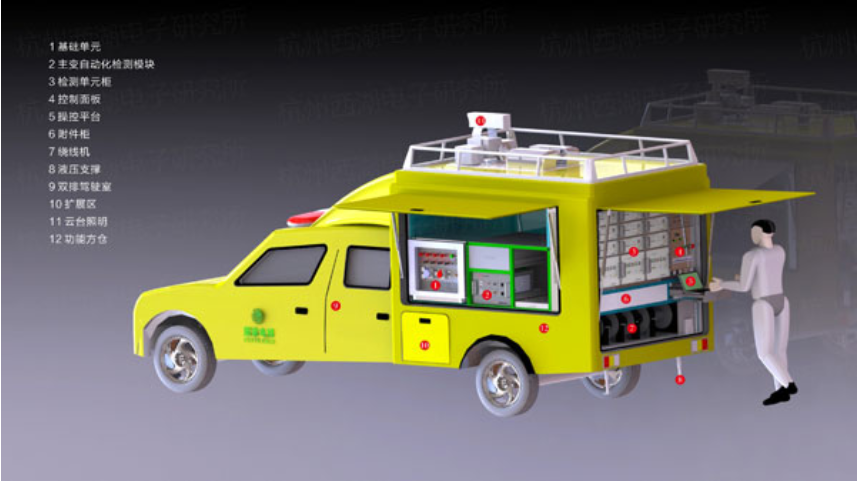

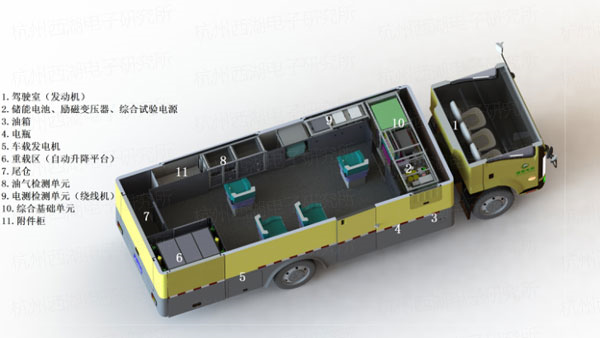

Layout of the Nissan pickup-truck version

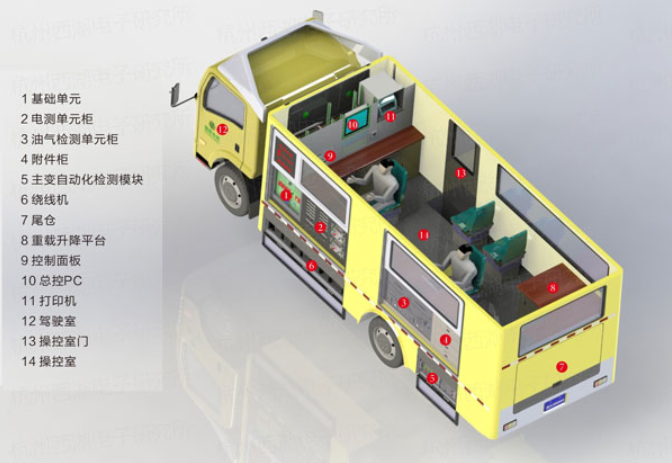

Layout of the IVECO Daily van version

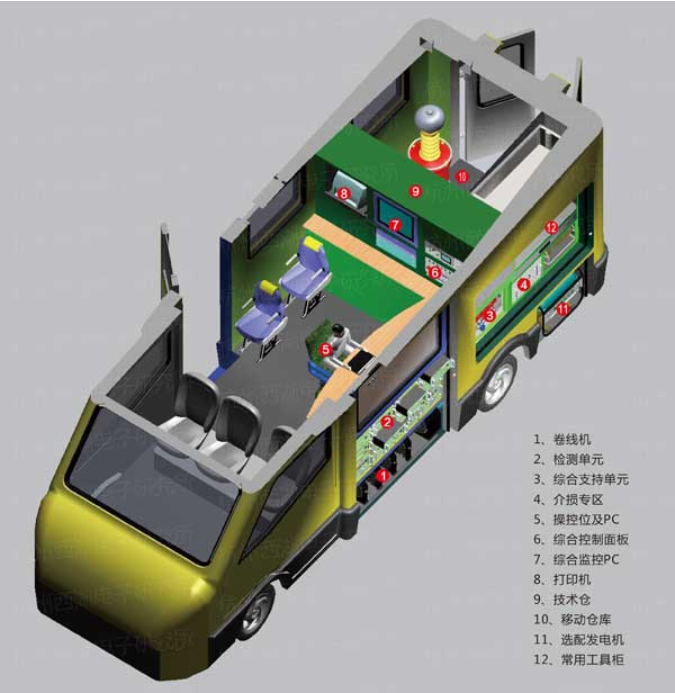

Layout of the ISUZU light truck version

Weight distribution layout

Key features of the Common Supporting Units:

•  Power supporting unit:An integrated unit that routes, combines, and manages power from three sources: grid as main

source, battery as auxiliary source, and vehicle generator as backup.

•  Integrated communication unit:Integrates means of communications, including wired (USB, RS232/485, Ethernet) and

wireless (Wi-Fi, 3G, 4G).Connects compatible third party measurement instruments.

•  Safety surveillance unit:Monitors the following sub-systems or factors: power source system, testing power supply system,

environmental conditions, grounding conditions, warning system, and measurement system conditions.Four analog and six

digital I/O ports are reserved for more monitoring and controlling needs.

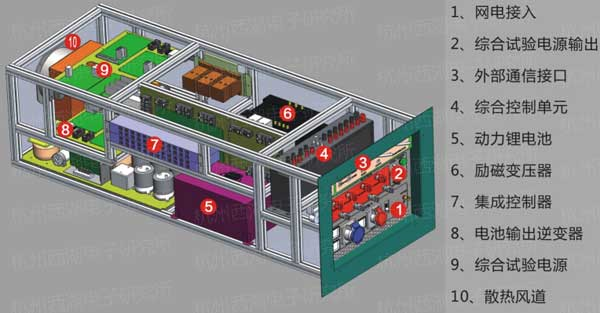

Example layout of a common unit

Onboard Instruments:

The following instruments are available for customization.

Name	Application
Onboard EST-5F HV Switchgear Tester Unit	Various HV switchgear testing
Onboard XD27100 Loop Resistance Tester Unit	Switchgear controlling circuit testing
Onboard XD2320 Winding Deformation Frequency Response Tester Unit	Winding deformation testing for specialty transformers and regular transformers rated 6kV and above
Onboard XD2501 DC Resistance Tester Unit	Transformer winding DC resistance testing
Onboard XD2810C OLTC Tester Unit	Transformer OLTC testing
Onboard XD3001 HV DC Generator Unit	DC power supply for HV switchgear testing
Onboard XD3100 Series Resonance System Unit	AC withstand voltage test
Onboard XD6101 Tan-delta Tester Unit	Tan-delta and capacitance measurement for HV equipment
Onboard XD2630 Short Circuit Resistance Tester Unit	LV short circuit resistance testing for transformers, PTs and CTs
Onboard XD6230 Grounding System Tester Unit	Grounding system testing
Onboard XD3800 Transformation-ratio Tester Unit	Transformation-ratio testing for various types of transformers
Onboard XD71 Power Transformer Automated Testing System Unit	All transformer testing subjects
Onboard XD50 Partial Discharge Tester Unit	Partial discharge detection with AE, HF, UHF, and TEV methods
Onboard XD3910 I-V Characteristics Tester Unit	I-V characteristics testing for PT/CT

Key features of the controlling software:

•  Communication management:Performing multiple tests simultaneously.Automatically captures device operational

data.Compatible with third party software.

•  Data saving:Save and query data in real-time.Wide variety of data formats available.Remote analysis and diagnosis.

•  System self-check ability.

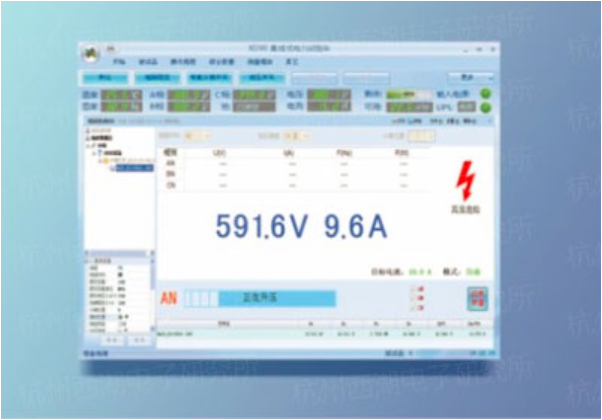

Controlling software UI

Key features of the Auxiliary Functional Units:

•  Cable Storage:Powered cable reels with manual backup.

•  Video surveillance & voice communication system:Remote controlled video surveillance mast with flood lights.Voice

communication between operators inside and outside the vehicle.Loudspeakers for making announcements and warnings.

•  Exterior display & warning light:Bright LED display on the operation side of the vehicle.Flashing warning lights on the roof.

•  AC system:Powerful AC system for operators’ comfort.

•  GPS navigation.

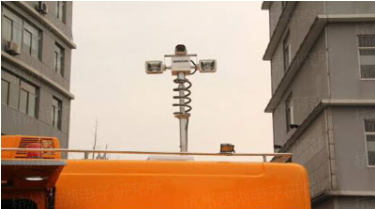

Video surveillance mast.

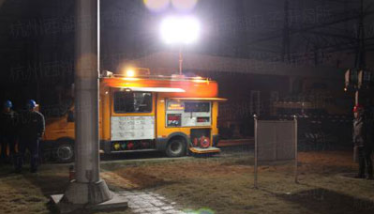

Night-time operation

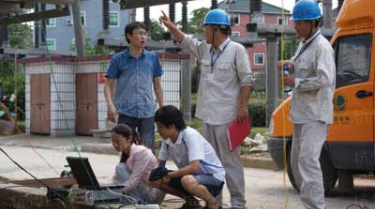

Field testing of power transformer

Pre-built Models:

Model	Name	Features	Applications
XD94ZD	Combined power testing vehicle	Test for insulation, operation characteristics, and oil & gas	Routine test
XD94HV	HV testing vehicle	Test for insulation and operation characteristics	Routine test
XD94ZJ	Compact combined power testing vehicle	Higher mobility, more convenient	Routine test for compact stations
XD94GD	Railroad power system testing vehicle	Wireless sensors	Tests for conventional and high-speed railroad systems
XD94DD	Online testing vehicle	Wireless sensors	Routine test
XD94YQ	Oil & gas testing vehicle	Modularization	Routine test
XD92JL	HV measurement & calibration vehicle	Powered deployment and retracting	Measurement & calibration operations
XD93DL	Cable testing vehicle	Wireless sensors, modularization	Routine tests
XD94QT	Commissioning testing vehicle	Wireless, multi-terminal distributed system	Commissioning test
XD94PD	Partial discharge testing vehicle	Modularization, powered deployment and retracting	Routine tests

*Fully customizable based on these models, or from ground-up
