Key features
• Portability:Compared with other testers with same functionality: 50% less volume, 40% less weight, and 20% thinner cables.
• Compatibility:No need to remove the bushing end-cap sensor for tan delta testing, if the sensor is our compatible product.
• Robust to interference:Accurate test results even under interference at 500% of the current being measured.
• Full protection:The tester is comprehensively protected from accidents including over current, over voltage, insulation failure, capacitive voltage rise, and grounding failure.
• Safety connectors:Fully insulated safety connectors prevent any accidental touching of high voltage.
• Reliable:Failure rate lower than 1‰.
Key parameters
Accuracy: 1% Range: No limit Accuracy: 1% Range: 3pF ~ 60nF@10kV Compare with tester on the market Comparison of HV cables Verification report from SGCC Metrology Center Comparison of insulated HV output terminals Comparison of insulated safety connectors Operation user interface

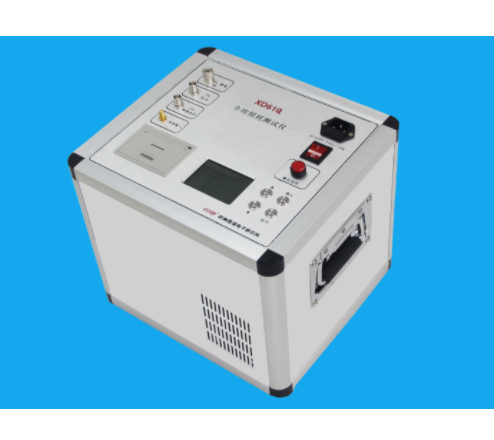

Product photosTan delta testing
Capacitance testing
Testing voltage
0.5 ~ 10kV
Testing AC frequency
Single/dual frequency, 45 ~ 55Hz
Size
300*270*250(mm)
Weight
17kg
